Figure 1. Western blot analysis of anti-SLC2A1 antibody (M00163-1). The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human placenta tissue lysates,
Lane 2: human placenta tissue lysates.Use mouse anti- SLC2A1 1:1000, probed with a goat anti-mouse IgG-HRP secondary antibody. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001). A specific band was detected for SLC2A1 at approximately 55KD. The expected band size for SLC2A1 is at 55KD.
Figure 2. IHC analysis using anti- SLC2A1 antibody (M00163-1). detected in paraffin-embedded section of human placenta tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB as the chromogen.
all(5)
Figure 3. IHC analysis using anti- SLC2A1 antibody (M00163-1). detected in paraffin-embedded section of human renal cancer tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB as the chromogen.
all(5)
Figure 4. ICC analysis using anti- SLC2A1 antibody (M00163-1).was detected in immersion fixed SiHa cell line . Cells were stained using the Dylight488-conjugated Anti-mouse IgG Secondary Antibody (green)(Catalog # BA1126) and counterstained with DAPI (blue).
all(5)

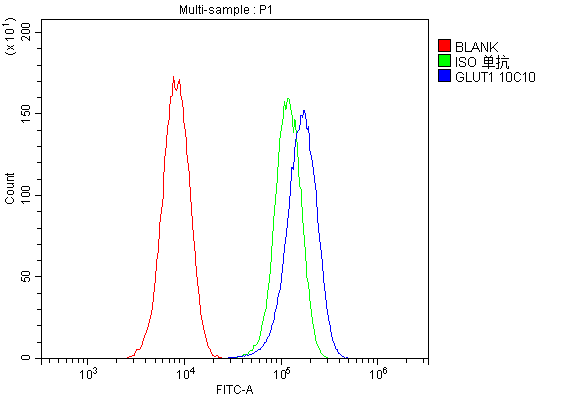

Figure 5. Flow cytometry analysis of U2OS cell (1:100) DyLight 488 conjugated goat anti-mouse IgG(blue) was used as secondary antibody. Isotype control antibody (Green line) was mouse IgG DyLight 488. Unlabelled sample (Red line).
all(5) | Western blot (WB): | 1:500-2000 |
| Immunohistochemistry (IHC): | 1:50-400 |
| Immunocytochemistry/Immunofluorescence (ICC/IF): | 1:50-400 |
| Flow Cytometry (Fixed): | 1:50-200 |
| (Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. | |
Figure 1. Western blot analysis of anti-SLC2A1 antibody (M00163-1). The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human placenta tissue lysates,
Lane 2: human placenta tissue lysates.Use mouse anti- SLC2A1 1:1000, probed with a goat anti-mouse IgG-HRP secondary antibody. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001). A specific band was detected for SLC2A1 at approximately 55KD. The expected band size for SLC2A1 is at 55KD.
Figure 2. IHC analysis using anti- SLC2A1 antibody (M00163-1). detected in paraffin-embedded section of human placenta tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB as the chromogen.
Figure 3. IHC analysis using anti- SLC2A1 antibody (M00163-1). detected in paraffin-embedded section of human renal cancer tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB as the chromogen.
Figure 4. ICC analysis using anti- SLC2A1 antibody (M00163-1).was detected in immersion fixed SiHa cell line . Cells were stained using the Dylight488-conjugated Anti-mouse IgG Secondary Antibody (green)(Catalog # BA1126) and counterstained with DAPI (blue).
Figure 5. Flow cytometry analysis of U2OS cell (1:100) DyLight 488 conjugated goat anti-mouse IgG(blue) was used as secondary antibody. Isotype control antibody (Green line) was mouse IgG DyLight 488. Unlabelled sample (Red line).
Figure 1. Western blot analysis of anti-SLC2A1 antibody (M00163-1). The sample well of each lane was loaded with 50ug of sample under reducing conditions.
Lane 1: human placenta tissue lysates,
Lane 2: human placenta tissue lysates.Use mouse anti- SLC2A1 1:1000, probed with a goat anti-mouse IgG-HRP secondary antibody. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1001). A specific band was detected for SLC2A1 at approximately 55KD. The expected band size for SLC2A1 is at 55KD.
Figure 2. IHC analysis using anti- SLC2A1 antibody (M00163-1). detected in paraffin-embedded section of human placenta tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB as the chromogen.
Figure 3. IHC analysis using anti- SLC2A1 antibody (M00163-1). detected in paraffin-embedded section of human renal cancer tissue. Biotinylated goat anti-mouse IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1021) with DAB as the chromogen.
Figure 4. ICC analysis using anti- SLC2A1 antibody (M00163-1).was detected in immersion fixed SiHa cell line . Cells were stained using the Dylight488-conjugated Anti-mouse IgG Secondary Antibody (green)(Catalog # BA1126) and counterstained with DAPI (blue).
Figure 5. Flow cytometry analysis of U2OS cell (1:100) DyLight 488 conjugated goat anti-mouse IgG(blue) was used as secondary antibody. Isotype control antibody (Green line) was mouse IgG DyLight 488. Unlabelled sample (Red line).
