| Western blot (WB): | 1:500-2000 |
| Immunohistochemistry (IHC): | 1:50-400 |
| (Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. | |

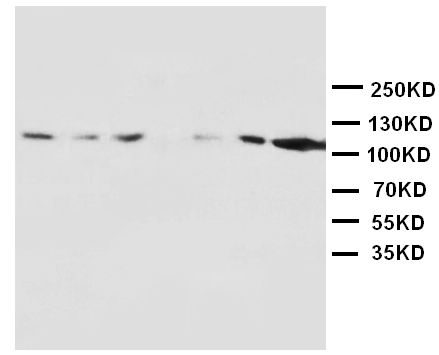

Western blot analysis of GRIN1 using anti-GRIN1 antibody (PA1222). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: Rat Brain tissue lysates,
Lane 2: Rat Brain tissue lysates,
Lane 3: Rat Liver tissue lysates,
Lane 4: Rat Heart tissue lysates,
Lane 5: MM453 whole cell lysates,
Lane 6: MM231 whole cell lysates,
Lane 7: HELA whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-GRIN1 antigen affinity purified polyclonal antibody (PA1222) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for GRIN1 at approximately 110 kDa. The expected band size for GRIN1 is at 105 kDa.

IHC analysis of GRIN1 using anti-GRIN1 antibody (PA1222).
GRIN1 was detected in a paraffin-embedded section of rat brain tissue. The tissue section was incubated with rabbit anti-GRIN1 Antibody (PA1222) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.

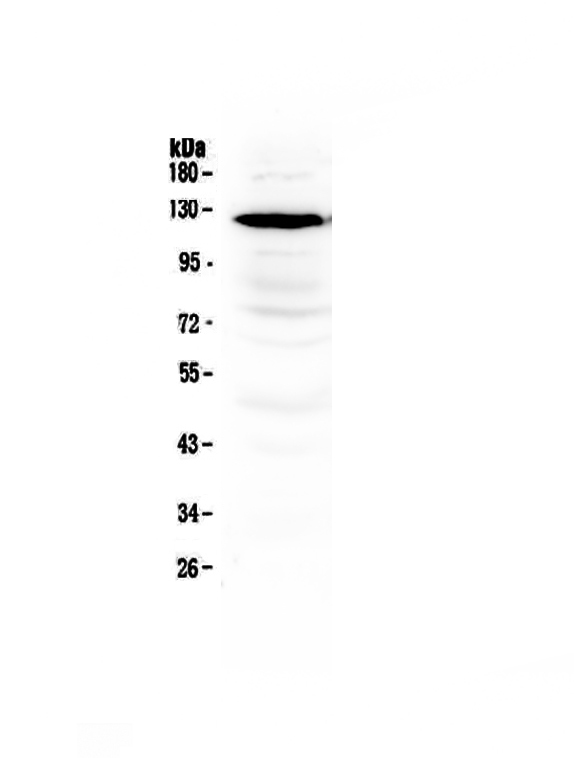

Western blot analysis of GRIN1 using anti-GRIN1 antibody (PA1222). The sample well of each lane was loaded with 30 ug of sample under reducing conditions.
Lane 1: Rat Brain tissue lysates,
Lane 2: Rat Brain tissue lysates,
Lane 3: Rat Liver tissue lysates,
Lane 4: Rat Heart tissue lysates,
Lane 5: MM453 whole cell lysates,
Lane 6: MM231 whole cell lysates,
Lane 7: HELA whole cell lysates.
After electrophoresis, proteins were transferred to a membrane. Then the membrane was incubated with rabbit anti-GRIN1 antigen affinity purified polyclonal antibody (PA1222) at a dilution of 1:1000 and probed with a goat anti-rabbit IgG-HRP secondary antibody (Catalog # BA1054). The signal is developed using ECL Plus Western Blotting Substrate (Catalog # AR1197). A specific band was detected for GRIN1 at approximately 110 kDa. The expected band size for GRIN1 is at 105 kDa.

IHC analysis of GRIN1 using anti-GRIN1 antibody (PA1222).
GRIN1 was detected in a paraffin-embedded section of rat brain tissue. The tissue section was incubated with rabbit anti-GRIN1 Antibody (PA1222) at a dilution of 1:200 and developed using HRP Conjugated Rabbit IgG Super Vision Assay Kit (Catalog # SV0002) with DAB (Catalog # AR1027) as the chromogen.
