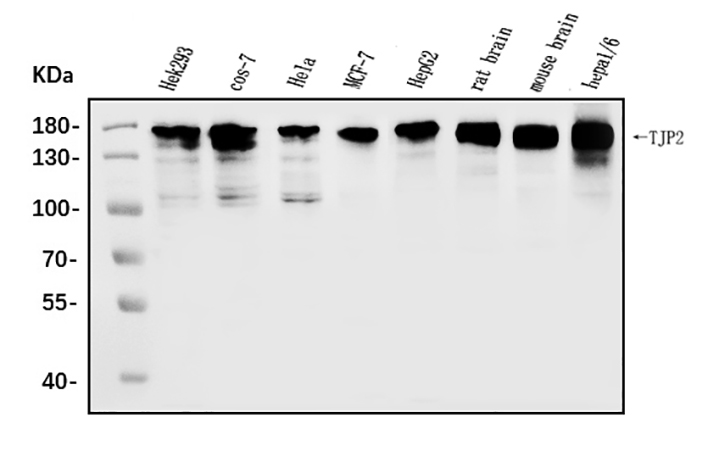

Figure 1. Western blot analysis of anti- TJP2 antibody (A02774-1). The sample well of each lane was loaded with 50ug of sample under reducing conditions.Lane 1: human HEK293 whole cell lysates，Lane 2: monkey COS-7 whole cell lysates,Lane 3: human HELA whole cell lysates.Lane 4: human MCF-7 whole cell lysates,Lane 5: human HEPG2 whole cell lysates,Lane 6: rat brain tissue lysates,Lane 7: mouse brain tissue lysates,Lane 8: mouse HEPA1-6 whole cell lysates.Use rabbit anti- TJP2 1:1000, probed with a goat anti-rabbit IgG-HRP secondary antibody. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002). A specific band was detected for TJP2 at approximately 150KD. The expected band size for TJP2 at 150KD.
all(6)
Figure 2. IHC analysis using anti- TJP2 antibody (A02774-1). detected in paraffin-embedded section of human ovarian serous adenocarcinoma tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
all(6)
Figure 3. IHC analysis using anti- TJP2 antibody (A02774-1). detected in paraffin-embedded section of human rectal cancer tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
all(6)
Figure 4. IHC analysis using anti- TJP2 antibody (A02774-1). detected in paraffin-embedded section of human ovarian cancer tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
all(6)
Figure 5. ICC analysis using anti- TJP2 antibody (A02774-1). was detected in immersion fixed A431 cell line. Cells were stained using the Dylight488-conjugated Anti-rabbit IgG Secondary Antibody (green)(Catalog # BA1127) and counterstained with DAPI (blue).
all(6)

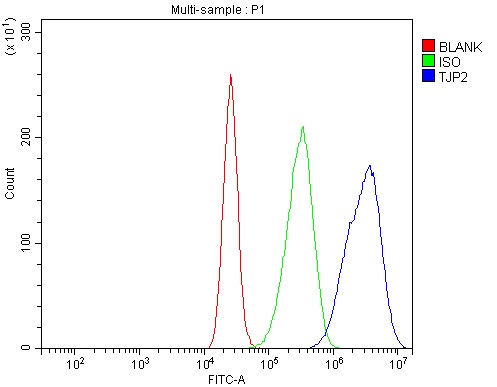

Figure 6. Flow cytometry analysis of CACO-2 cell (1:100) DyLight 488 conjugated goat anti- rabbit IgG(blue) was used as secondary antibody. Isotype control antibody (Green line) was rabbit IgG DyLight 488. Unlabelled sample (Red line).
all(6) | Western blot (WB): | 1:500-2000 |
| Immunohistochemistry (IHC): | 1:50-400 |
| Immunocytochemistry/Immunofluorescence (ICC/IF): | 1:50-400 |
| Flow Cytometry (Fixed): | 1:50-200 |
| (Boiling the paraffin sections in 10mM citrate buffer,pH6.0,or PH8.0 EDTA repair liquid for 20 mins is required for the staining of formalin/paraffin sections.) Optimal working dilutions must be determined by end user. | |
Figure 1. Western blot analysis of anti- TJP2 antibody (A02774-1). The sample well of each lane was loaded with 50ug of sample under reducing conditions.Lane 1: human HEK293 whole cell lysates，Lane 2: monkey COS-7 whole cell lysates,Lane 3: human HELA whole cell lysates.Lane 4: human MCF-7 whole cell lysates,Lane 5: human HEPG2 whole cell lysates,Lane 6: rat brain tissue lysates,Lane 7: mouse brain tissue lysates,Lane 8: mouse HEPA1-6 whole cell lysates.Use rabbit anti- TJP2 1:1000, probed with a goat anti-rabbit IgG-HRP secondary antibody. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002). A specific band was detected for TJP2 at approximately 150KD. The expected band size for TJP2 at 150KD.
Figure 2. IHC analysis using anti- TJP2 antibody (A02774-1). detected in paraffin-embedded section of human ovarian serous adenocarcinoma tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Figure 3. IHC analysis using anti- TJP2 antibody (A02774-1). detected in paraffin-embedded section of human rectal cancer tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Figure 4. IHC analysis using anti- TJP2 antibody (A02774-1). detected in paraffin-embedded section of human ovarian cancer tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Figure 5. ICC analysis using anti- TJP2 antibody (A02774-1). was detected in immersion fixed A431 cell line. Cells were stained using the Dylight488-conjugated Anti-rabbit IgG Secondary Antibody (green)(Catalog # BA1127) and counterstained with DAPI (blue).
Figure 6. Flow cytometry analysis of CACO-2 cell (1:100) DyLight 488 conjugated goat anti- rabbit IgG(blue) was used as secondary antibody. Isotype control antibody (Green line) was rabbit IgG DyLight 488. Unlabelled sample (Red line).
Figure 1. Western blot analysis of anti- TJP2 antibody (A02774-1). The sample well of each lane was loaded with 50ug of sample under reducing conditions.Lane 1: human HEK293 whole cell lysates，Lane 2: monkey COS-7 whole cell lysates,Lane 3: human HELA whole cell lysates.Lane 4: human MCF-7 whole cell lysates,Lane 5: human HEPG2 whole cell lysates,Lane 6: rat brain tissue lysates,Lane 7: mouse brain tissue lysates,Lane 8: mouse HEPA1-6 whole cell lysates.Use rabbit anti- TJP2 1:1000, probed with a goat anti-rabbit IgG-HRP secondary antibody. The signal is developed using an Enhanced Chemiluminescent detection (ECL) kit (Catalog # EK1002). A specific band was detected for TJP2 at approximately 150KD. The expected band size for TJP2 at 150KD.
Figure 2. IHC analysis using anti- TJP2 antibody (A02774-1). detected in paraffin-embedded section of human ovarian serous adenocarcinoma tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Figure 3. IHC analysis using anti- TJP2 antibody (A02774-1). detected in paraffin-embedded section of human rectal cancer tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Figure 4. IHC analysis using anti- TJP2 antibody (A02774-1). detected in paraffin-embedded section of human ovarian cancer tissue. Biotinylated goat anti-rabbit IgG was used as secondary antibody. The tissue section was developed using Strepavidin-Biotin-Complex (SABC) (Catalog # SA1022) with DAB as the chromogen.
Figure 5. ICC analysis using anti- TJP2 antibody (A02774-1). was detected in immersion fixed A431 cell line. Cells were stained using the Dylight488-conjugated Anti-rabbit IgG Secondary Antibody (green)(Catalog # BA1127) and counterstained with DAPI (blue).
Figure 6. Flow cytometry analysis of CACO-2 cell (1:100) DyLight 488 conjugated goat anti- rabbit IgG(blue) was used as secondary antibody. Isotype control antibody (Green line) was rabbit IgG DyLight 488. Unlabelled sample (Red line).
